ELECTRIC INTERMITTENT DUTY

ELECTRIC CONTINOUS DUTY

PNEUMATIC OPERATION

ULPA FILTRATION

AUTOCLAVABLE

ACID RECOVERY

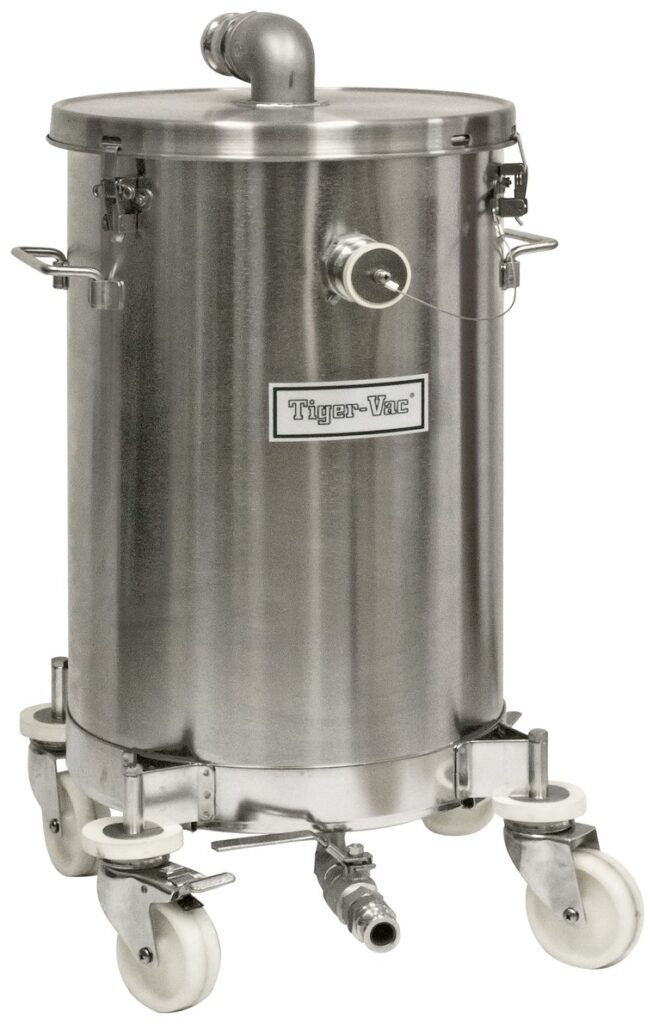

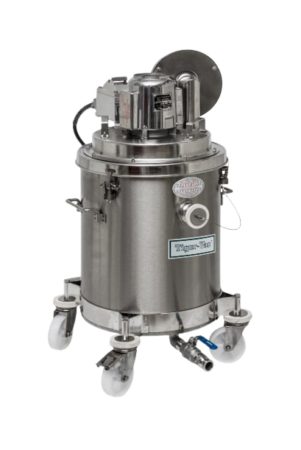

• For General Cleanup in Hazardous Location
• Single Venturi Pneumatic Operation
• Wet & Dry Recovery
• Stainless Steel SS304 Construction
• Dry Recovery Tank 22 or 37 Litre
• Liquid Recovery Tank 28 or 47 Litre
• Static Dissipative Poly Line & Clips for Easy and Safe Disposal of Recovered Material
• 4 Wheel Dolly with Static Dissipative Wheels

• Cleanroom ISO Class 4 compatible (former class 10)
• Designed for hazardous location as defined in NFPA70
  Division 1 Class I groups A, B, C, and D
  Division 1 Class II groups E, F, and G
• IEC and IECEx Certified for Australia, IECEx LCIE 17.0076 X
• ATEX Ex certified explosive atmospheres
• EX-MAT safe recovery guaranteed
• ESD safe, static dissipative
• ULPA Filter with an efficiency of 99.999% on 0.12 micron, 99.9995% on 0.18 micron. Tested IEST_RP_CC001
• MRAC middle ring with activated carbon for toxic fumes and vapors

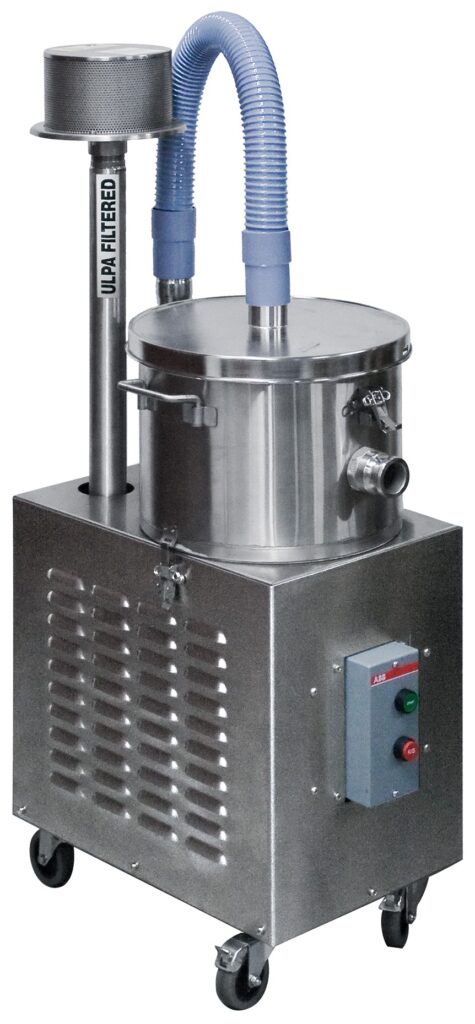

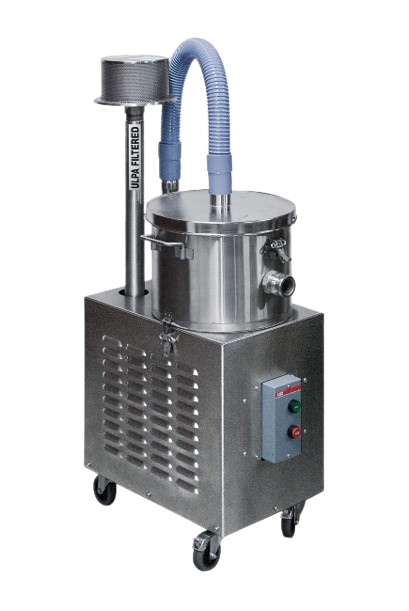

• For general areas in the food and pharma processing including tablet recovery
• Dry recovery only
• Single Phase or 3 Phase electric operation continuous duty motor mounted vertically
• Designed to be attached to process machines or 4 wheel dolly mounted for mobile unit
• Low Noise 64 dBA
• Stainless steel or white powder coated construction
• Recovery capacity 15 liter tank
• Recovery disposable filter bag 7.5 liter

• ISO Cleanroom Class 4 Compatible (formerly class 10)
• U15 ULPA Filter with an efficiency of 99.999% on 0.12 micron, 99.9995% on 0.18 micron. Tested IEST-RP-CC001. U15 by MPPS method as per EN 1822
• H14 HEPA Filter with an efficiency of 99.995% on 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant
• Aerosol leak tested before leaving our facility

• Process machine attachable

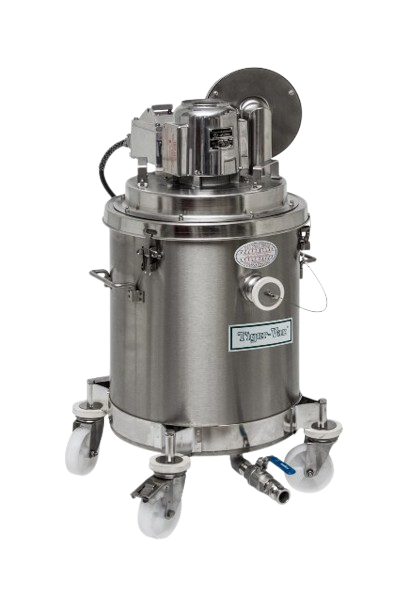

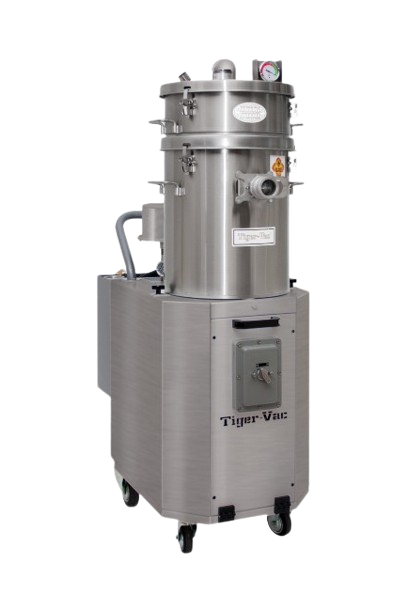

• Designed for general cleanup, tablet recovery
• Dry only recovery
• Continuous duty single phase electric operation
• TEFC explosion proof motor legally certified
• Noise reduction muffler
• Stainless steel 304 construction
• Vertical mounting for areas with space constraints
• Optional CFB conductive filter bag or MRPFT manual reverse purge with filter tubes system
• Static dissipative poly liner and retainer clip for the easy and safe disposal of recovered materials
• Includes complete static dissipative tool kit
• Optional: other motor performances available

• Cleanroom ISO Class 4 Compatible (former class 10)
• IEC IECEx certified for Australia
  Equipment protection level of EPL Db and EPL Gb, IECEx LCI 10.0040 X
• CSA Certified for HAZLOC
  Division 1 class I group D and class II groups F, G and T3C
  Division 1 class II group E (metal dust) motor and switch available
  Division 2 class 1 group D and class II groups f, g, and T3C
• EX-MAT safe recovery guaranteed for combustible/conductive dust and flammable liquid
• ESD Safe, static dissipative powder coating to prevent ESD
• Less than 10 ohms of resistivity
• ULPA U15 Filter with an efficiency of 99.999% at 0.12 micron and  an efficiency 99.9995% on 0.18 micron. Tested IEST-RP-CC001. U15 by MPPS method as per EN 1822
• Aerosol leak tested prior to leaving our facility
• Motor and switch for use in presence of conductive metal dust is available. North America: class II group E, Europe: dust group IIIC

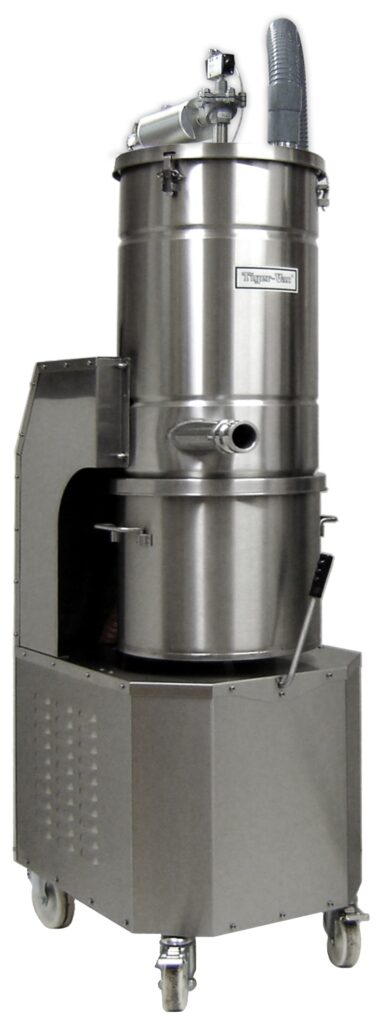

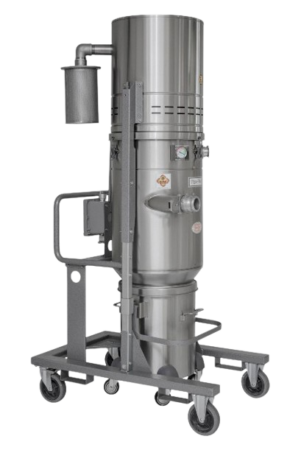

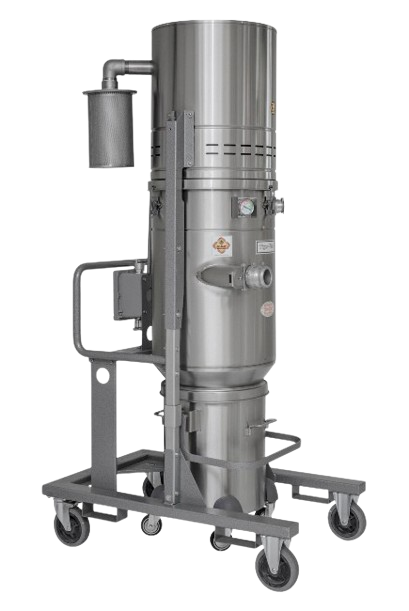

• Designed to be attached to process machines and for general cleanup in the Food industry or tablet recovery in the Pharmaceutical industry
• Dry recovery only
• Continuous duty single phase or 3 phase motor vertically mounted
• Stainless steel SS304 construction
• Dry recovery tank 35 litre
• ARP automatic reverse purge with static dissipative reverse purge cartridge
• Available in stainless steel or white powder coated, or combination construction
• Fixed unit or 4 wheel portable unit

• Cleanroom ISO Class 4 Compatible (former class 10)
• All electrical components certified by and NRTL such UL, CSA or ETL
• ESD Safe, Static Dissipative
• U15 ULPA Filter with an efficiency of 99.999% on 0.12 micron and 99.9995% on 0.18 micron. U15 by MPPS method as per EN 1822. Tested IEST-RP-CC001
• H14 HEPA Filter 99.995% on 0.3 micron. H14 by MPPS method as per EN 1822. Tested IEST-RP-CC001
• Aerosol leak tested before leaving our facility

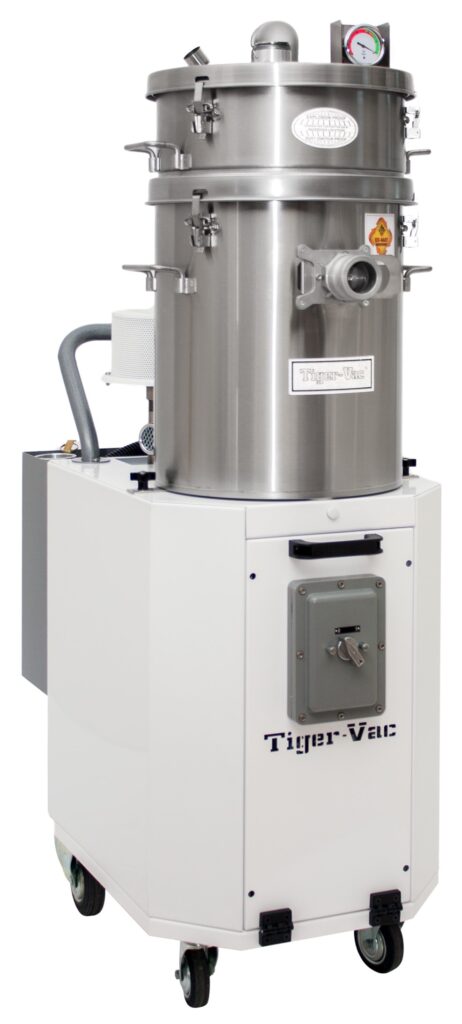

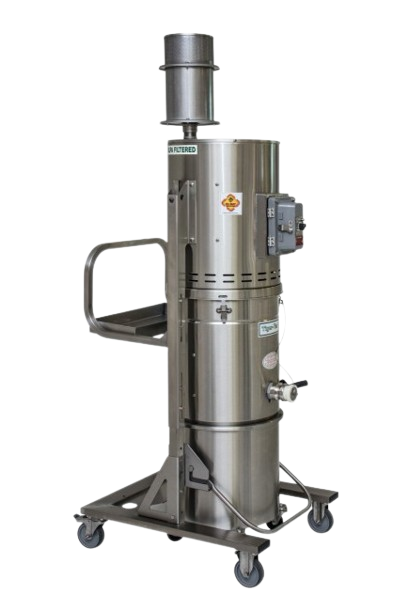

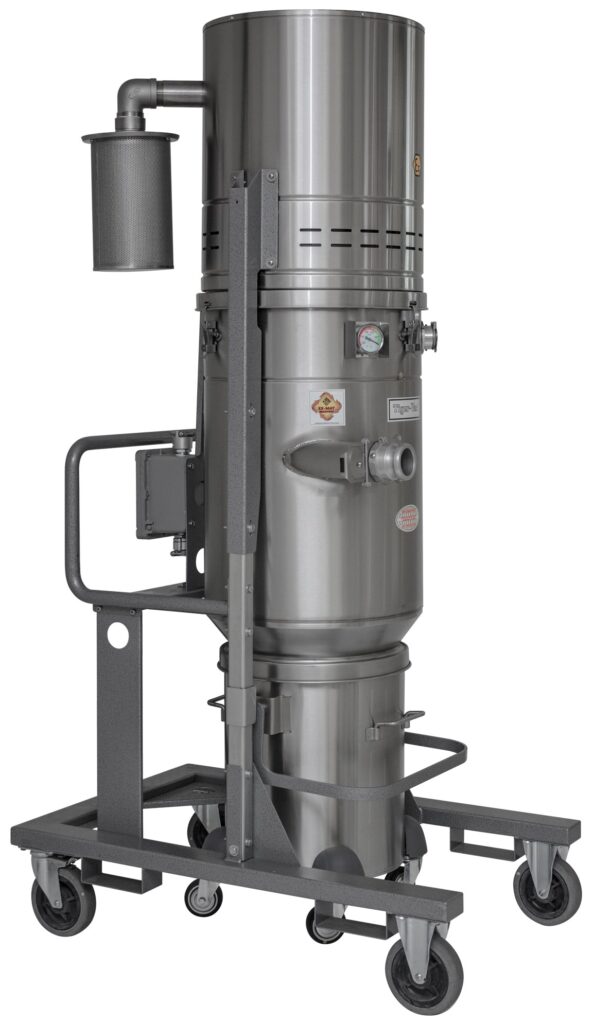

• For hazardous & combustible areas, legally certified
• Dry recovery only
• Continuous duty 3 phase TEFC motor, third party certified
• Stainless steel SS304 construction except for cart
• Detachable recovery tank 50 liter
• MRP manual reverse purge with static dissipative reverse purge cartridge
• Optional ARP automatic reverse purge filter cleaning system
• Static conductive aluminized spun bond reverse purge cartridge is contained within a removable filter
• Static dissipative poly liner and clip for easy and safe disposal of recovered material
• Static dissipative wheels
• Vertical mounting for areas with space constraints
• Equipped with CSMT, cartridge with suspended motor top
• Other motor performances available

• Cleanroom ISO Class 4 Compatible (former class 10)
• IEC IECEx certified for Australia
  Equipment protection level of EPL Db and EPL Gb, IECEx LCI 10.0040 X
• CSA Certified for HAZLOC
  Division 1 class I group D and class II groups F, G and T3C
  Division 1 class II group E (metal dust) motor and switch available
  Division 2 class 1 group D and class II groups f, g, and T3C
• EX-MAT safe recovery guaranteed for combustible/conductive dust and flammable liquid
• ESD Safe, static dissipative powder coating to prevent ESD
• Less than 10 ohms of resistivity
• ULPA U15 Filter with an efficiency of 99.999% at 0.12 micron and  an efficiency 99.9995% on 0.18 micron. Tested IEST-RP-CC001. U15 by MPPS method as per EN 1822
• H14 HEPA filter optional
• Aerosol leak tested prior to leaving our facility
• Motor and switch for use in presence of conductive metal dust is available. North America: class II group E, Europe: dust group IIIC

• For general cleanroom areas include biohazard applications
• Dry recovery only
• Single phase electric operation
• Stainless Steel 304 construction
• Recovery capacity 0.4 – 1.2 Litre

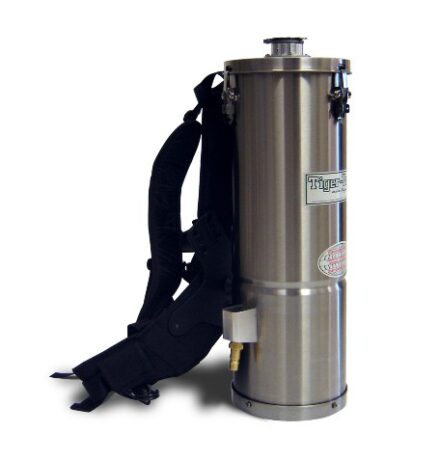

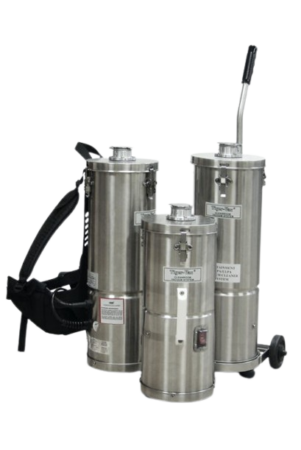

• Available as Backpack, Handheld, and Golfcart versions
• Includes complete tool kit

• ISO Cleanroom Class 4 ISO 14644-1 (former class 10)
• Static Free & ESD Safe
• EMI/RFI Shielded
• Less than 10 ohms of resistivity
• Multi stage Filtration System
• Containment H14 HEPA filter with an efficiency of 99.995% on 0.3 micron
• Containment U15 ULPA Filter with an efficiency of 99.999% on 0.12 micron and 99.9995% on 0.18 micron

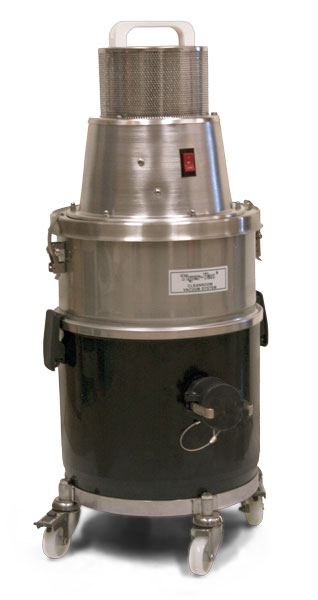

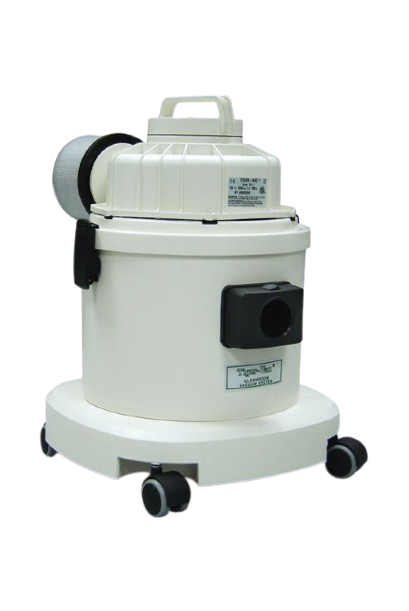

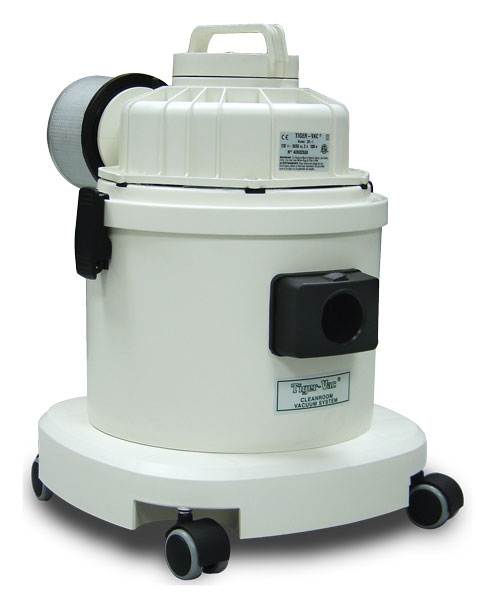

• For contamination controlled areas
• Dry recovery only
• Single phase electric operation
• Thru-Flow heavy duty motor
• Low noise level 60dBA at 2m
• Plastic or stainless steel recovery tank
• Recovery capacity 15 litre tank
• Recovery disposable filter bag 7.5 Litre
• 4 wheel dolly mounted for easy maneuverability
• Includes complete tool kit

• ISO Cleanroom Class 4 Compatible (former class 10)
• Meets CUS ETL standards for electric vacuum cleaning machines and blower cleaners UL-1017
• 3 Stage Filtration System includes U15 ULPA Filter 99.9995% on 0.18 micron, main cloth filter, disposable filter bags

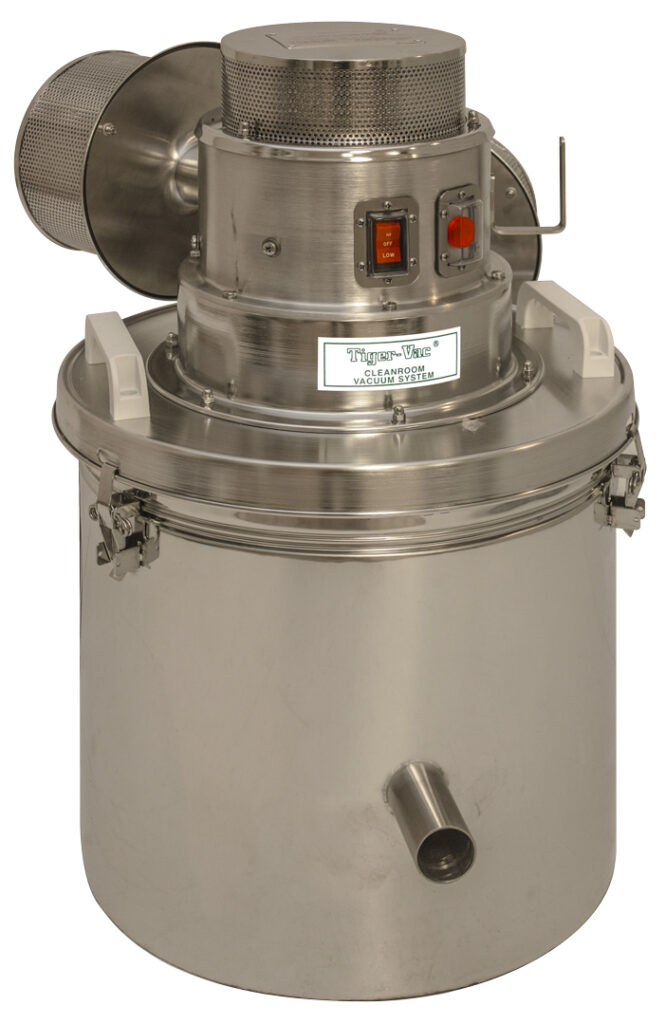

• Designed for recovery of potent carcinogenic powders
• Equipped with a safe containment canister for collection, containment and disposal
• Dry only recovery
• Single phase electric operation
• Powerful dual speed thru-flow motor
• TELECOM package available
• 4 wheel dolly mounted for easy maneuverability
• 3 optional tool kits: standard, ESD safe and autoclavable

Safety Features

• ISO Cleanroom Class 4 compatible (former class 10)
• EMI/RFI shielded
• Autoclavable SAE 316 filter chamber and wheel base
• Static dissipating & ESD
  safe
• Less than 10 ohms resistivity
• 5-stage filtration system incuding ULPA, HEPA, PTFE laminated main cloth filter, safety filter, and disposable filter bag
• U15 ULPA filter with efficiency of 99.999% on 0.12 micron and 99.9995% on 0.18 micron
• H14 HEPA filter with an efficiency of 99.99% on 0.3 micron

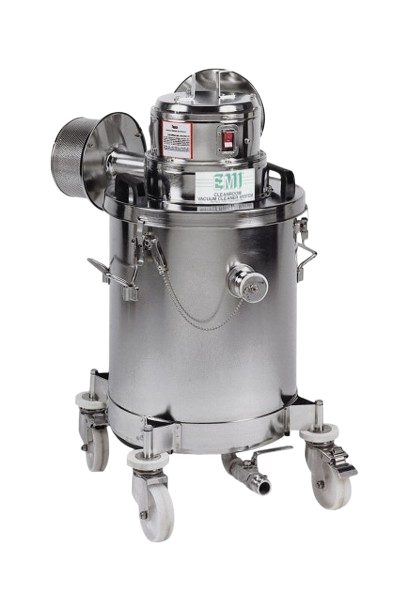

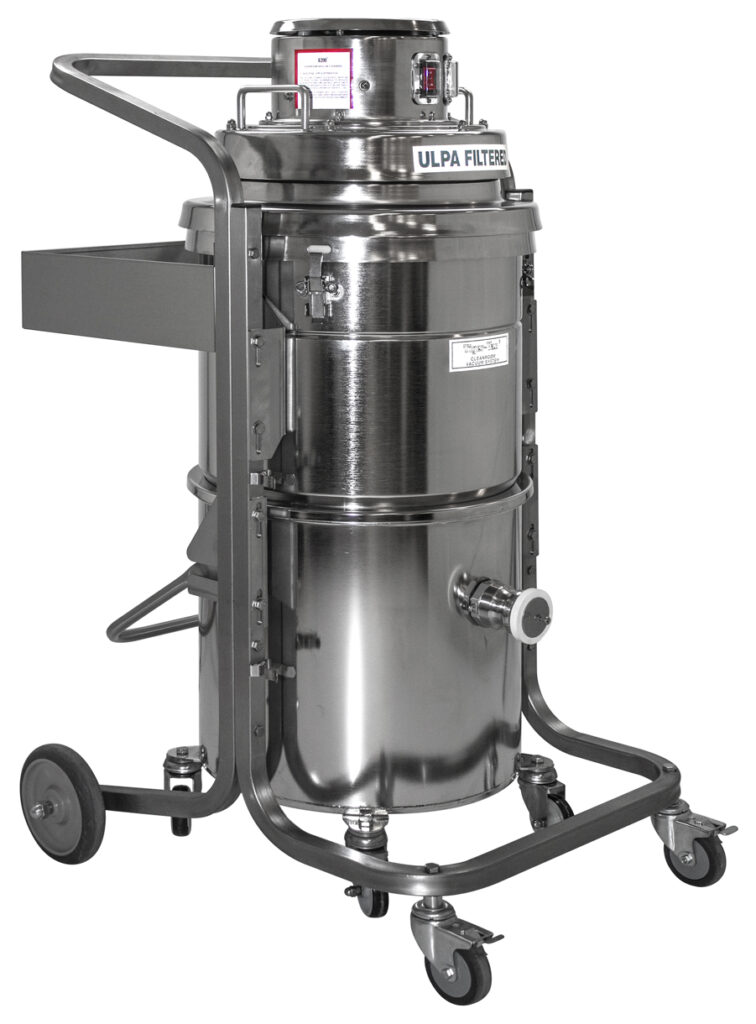

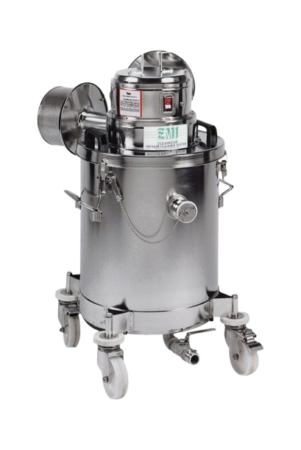

• Designed for contamination controlled environments
• Wet & Dry recovery
• Single phase electric operation
• Heavy duty 2-stage bypass motor
• 1.6 HP powerful suction
• Stainless steel recovery tank
• 4 wheel dolly mounted for easy maneuverability
• Includes complete tool kit

• ISO Cleanroom Class 4 Compatible (former class 10)
• CSA ANSI/UL 1017 CSA C22.2 No.243 compliant
• EMI / RFI shielded
• Static dissipating & ESD safe
• Less than 10 ohms resistivity
• 5-stage filtration system
  2 x U15 ULPA Filters with an efficiency of 99.999% on 0.12 micron and 99.9995% on 0.18 micron
  Double cloth filter
  Disposable filter bag
• MRAC middle ring with activated carbon for absorption toxic/noxious fumes and vapors

• For General Areas & Combustible Areas

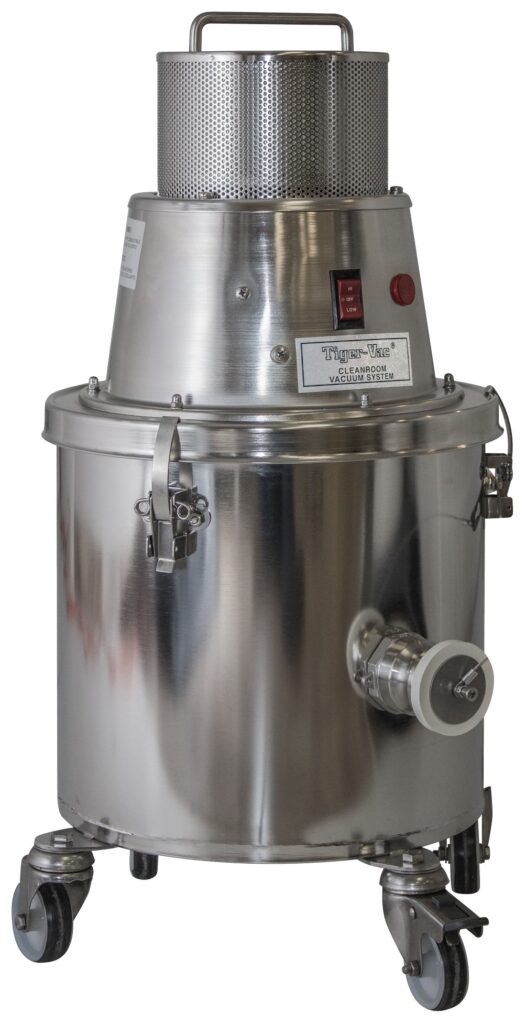

• Designed specifically for the Pharmaceutical, Semiconductor, and Microelectronics industries
• Dry recovery only
• Single phase electric operation
• Powerful suction, quiet operation
• Complete electropolish stainless steel construction to remove surface contamination
• Disposable collection bag
• Variety of accessories available including autoclavable and ESD safe

• ISO Cleanroom Class 4 ISO 14644-1 conditions compatible (class 10 as per FED STD 209E)
• Less than 10 ohms Resistivity
• Static dissipating and ESD safe
• Multi-stage filtration system
  Upstream H14 HEPA filter and downstream U15 ULPA filter
  Primary filter is a disposable collection bag and polyester filter with filtration Class M as per IEC 60335-2-69
• H14 HEPA filter with an efficiency of 99.995% on 0.3 micron. Tested IEST-RP-CC001
• U15 ULPA filter with an efficiency of 99.999% on 0.12 micron and  99.9995% on 0.18 micron. Tested IEST-RP-CC001
• Recovery tank is made of SS316 stainless steel and is fully autoclavable up to 121ºC including white nylon wheels. Alternative static conductive grey wheels, non autoclavable

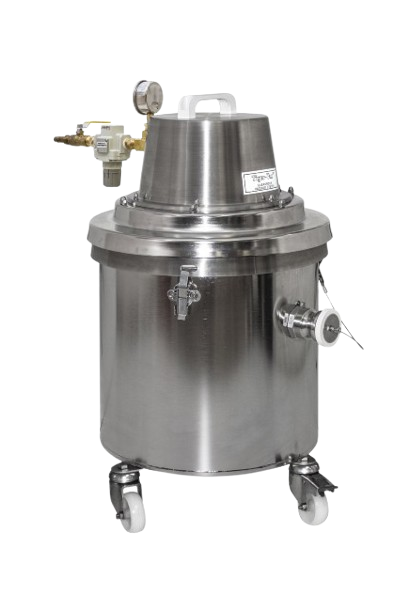

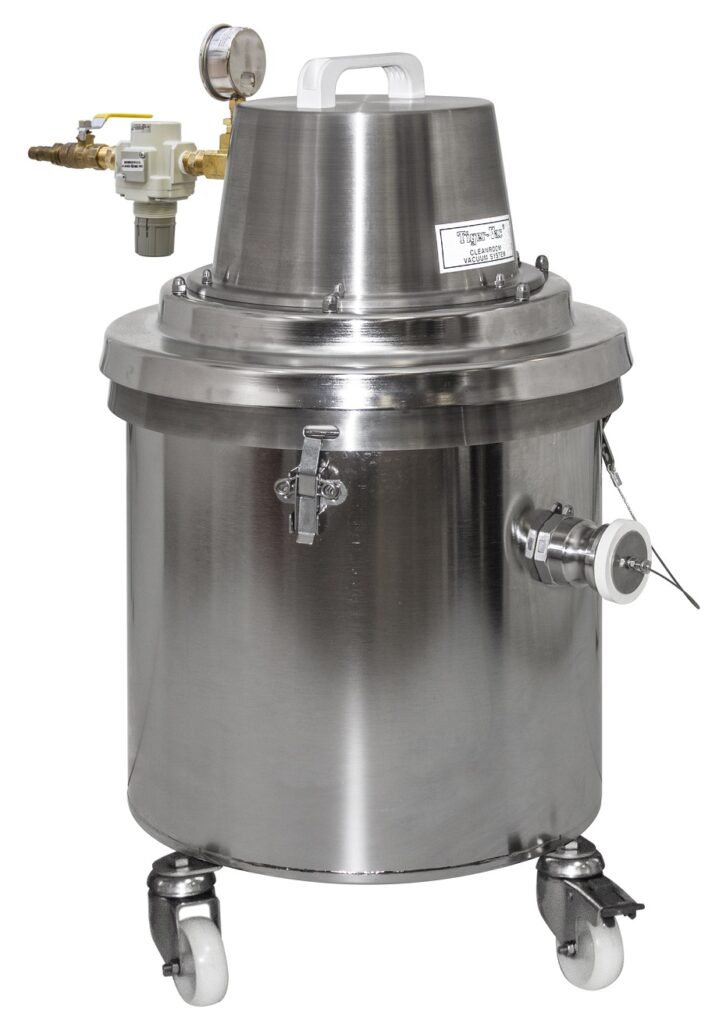

• For general areas & combustible areas, legally certified explosion/dust ignition proof by OSHA approved nationally recognized testing laboratory (NRTL)
• Dry only or Wet & Dry recovery
• Single venturi operation
• Powerful suction, quiet operation 68dBA
• Stainless steel 304/316 Construction
• Disposable collection bag & primary filter
• Included complete static dissipative tool kit
• Pressure regulator included. Regulator is adjustable between 0 psi. (0 bar) to 150 psi. (10 bars). It is factory set at 80 psi. (5.5 bars) for ideal performance and noise level

• Cleanroom ISO Class 4 compatible (former class 10)
• Designed for hazardous location as defined in NFPA70
  Division 1 Class I groups A, B, C, and D
  Division 1 Class II groups E, F, and G
• ATEX Ex certified explosive atmospheres
• EX-MAT safe recovery guaranteed
• Less than 10 ohms of resistivity
• ESD safe, static dissipative
• ULPA U15 filter downstream, with an efficiency of 99.999% on 0.12 micron, 99.9995% on 0.18 micron. Tested IEST_RP_CC001
• HEPA H14 filter upstream for dry version
• MRAC middle ring with activated carbon for toxic fumes and vapors
• Recovery tank SAE316 stainless steel and white nylon wheels are fully autoclavable up to 122°C
• Static conductive grey wheels (non-autoclavable) are available upon request

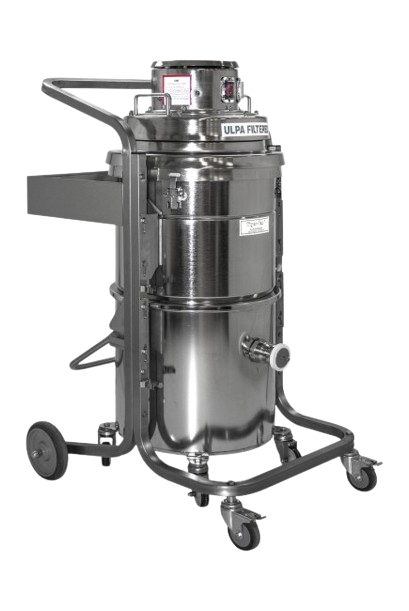

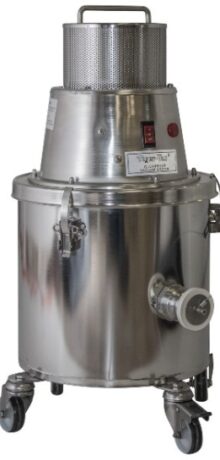

• Designed specifically for the Pharmaceutical, Semiconductor, and Microelectronic industries
• Dry recovery only or Wet & Dry recovery
• Single phase electric operation
• 2-stage bypass motor provides powerful suction and quiet operation
• All stainless steel construction with anti-contamination  electropolish finish
• Easy storage of power cord on the powerhead
• Variety of accessories are available including autoclavable and ESD safe

• ISO Class 4 Cleanroom conditions compatible as defined in ISO 14644-1 (Class 10 as per FED STD 209E)
• Static Dissipating & ESD safe
• Less than 10 ohms resistivity
• Compliant with GMP standards
• Multi-stage filtration system
  2 x absolute U15 ULPA filters with efficiency 99.999% on 0.12 micron and 99.9995% on 0.18 micron. Rated U15 as per EN 1822 as placed at both the working air and the cooling air exhausts of the vacuum system to ensure cleanroom compatibility
• Polyester primary filters & disposable collection bag filtration Class M IEC 60335-2-69
• Autoclavable parts up to 121°C: stainless steel recovery tank, floater liquid cut-off, tools, and white nylon wheels

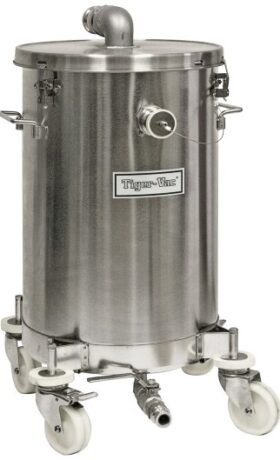

• Designed for the recovery of liquid acids and corrosive liquids in  conjunction with a cleanroom vacuum cleaner
• Dry Recovery Optional
• Stainless Steel SS304 Construction with Electropolish Finish
• 4 wheel dolly mounted for easy maneuverability
• Includes complete tool kit

• Cleanroom ISO Class 4 compatible (former class 10). Suitable for pharmaceutical industry
• ATEX Ex Explosive Atmosphere Certified
• KINA 3 activated carbon for absorption of chloride and acid fumes and vapors.
• Less than 10 ohms of resistivity
• ESD Safe and Static Dissipative

• Designed for the recovery of acids & corrosive liquids
• Heavy duty 2-stage by pass motor
• Acid resistant polyethylene, nylon
  and PVC construction
• Includes complete tool kit

• Cleanroom ISO Class 4 compatible (former class 10)
• U15 ULPA filter with efficiency of 99.999% on 0.12 micron and 99.9995% on 0.18 micron. Tested IEST-RP-CC001. U15 by MPPS method as per EN 1822
• EMI/RFI Shielded
• KINA 3® activated carbon for absorption of chloride and acid vapors (HF, HCL etc.)
• Aerosol leak tested prior to leaving our facility
