Tiger-Vac’s extensive range of explosion proof and dust ignition proof industrial vacuum cleaner systems are legally certified for use in gas zone 1, 2 and dust zone 21, and 22. 3rd party certified by IEC IECEx, ATEX for explosive atmospheres and CSA C US, OSHA, and NFPA. Our vacuum cleaners meet and exceed these standards to provide a legally certified recovery system.
Applications
Finely Pulverised Dust, Powder, Bulk Debris, Flammable Liquid, Tablets, Food, Paint etc.
Industry
Agriculture, Manufacturing, Processing, Pharma, Pyrotechnics, Mining, Refining etc.
Models

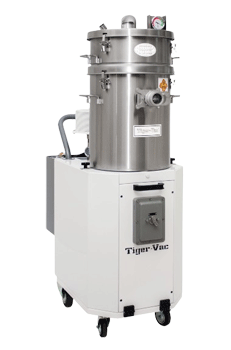

ELECTRIC SINGLE PHASE
Dry Only Recovery

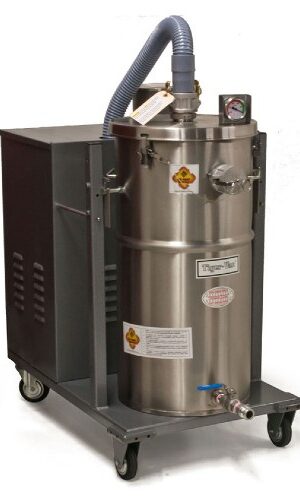

ELECTRIC SINGLE / 3-PHASE
Wet & Dry Recovery

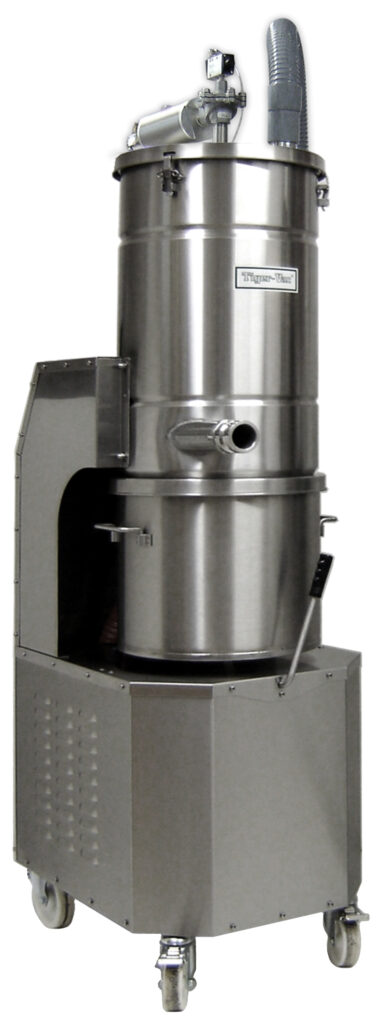

ELECTRIC 3-PHASE
Dry Only Recovery
SINGLE VENTURI
Compact
SINGLE / TWIN VENTURI
Heavy-Duty, Dry Only Recovery
SINGLE / TWIN VENTURI
Wet & Dry Recovery
Product Line

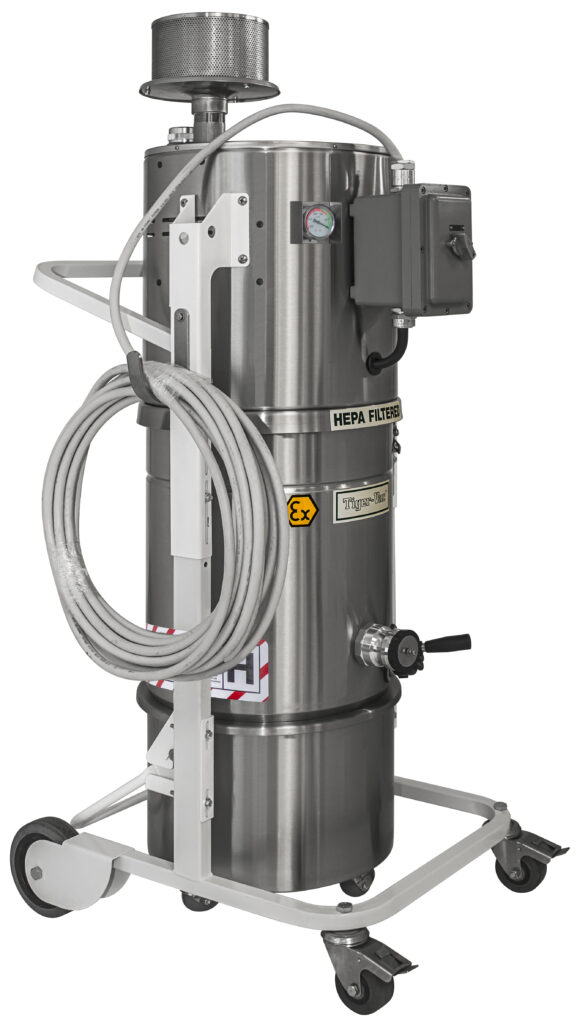

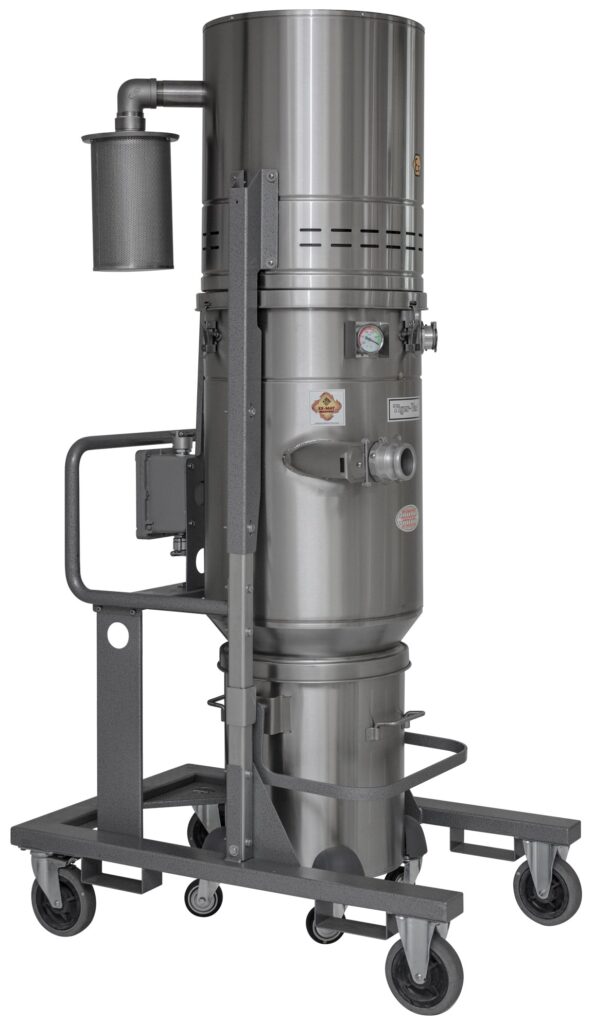

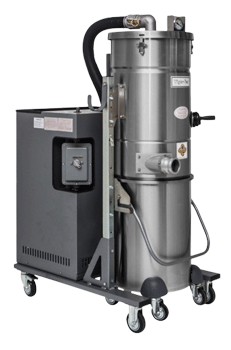

SINGLE PHASE & 3 PHASE
Dry Only Recovery
Specifications
Safety Features
Dust Zone 21, 22 Gas Zone 1, 2
- Continuous duty single-phase or 3-phase (TEFC) explosion proof/dust ignition proof motor. Third party certified
- General cleanup in hazardous areas
- Dry recovery only
dust, powder, tablets - Portable or process machine attachable
- Stainless steel 304 or 316 body and heavy duty powder coated cart
- Vertical mounting for areas with space constraints
- Recovery tank size: 35, 36, 50, 55, or 100 litre
Optional:
- All stainless steel 304 construction
- True cyclone separator
- MFS manual filter shaker
- MRP manual reverse purge
- APS automatic purge system with either 4 aluminized spun bond filter cartridges, or 4 socks. 4 fully integrated diaphragm valves
- Detachable tank
- 4 wheel cart with static dissipative or conductive wheels
- IECEx 3rd Party Certified, CD EX Series IECEx LCI 10.0040 X Certified for providing an Equipment Protection Level of EPL Db and EPL, T4 Gb, International Certification for Explosive Atmospheres
- ATEX EX Certified Explosive Atmospheres
- CSA Certified HAZLOC
Division 1 Class 1 Group D, T3C
Division 1 Class 2 Groups E, F, G
Division 2 Class 1 Group D
Division 2 Class 2 Group F, G, T3C - EX-MAT Recovery Guaranteed for Combustible and Conductive Dust
- ESD Safe to Prevent Ignition Hazard
- Less than 10 ohms of Resistivity
- Conductive Filter Bag or Manual Reverse Purge with Filter Tube System
- Static Dissipative Tool Kit
- H14 HEPA Filter 99.995% on 0.3 micron
- Vacuum System Aerosol Leak Tested before leaving our facility
Optional:
- U15 ULPA Filter 99.9995% on 0.18 microns
- Cleanroom ISO 14644-1 Class 4 Compatible
- EMI/RFI Shielded
-
KINA 3® Activated Carbon for Absorption of Toxic Fumes and Vapors
- Motor and Switch for Conductive Metal Dust

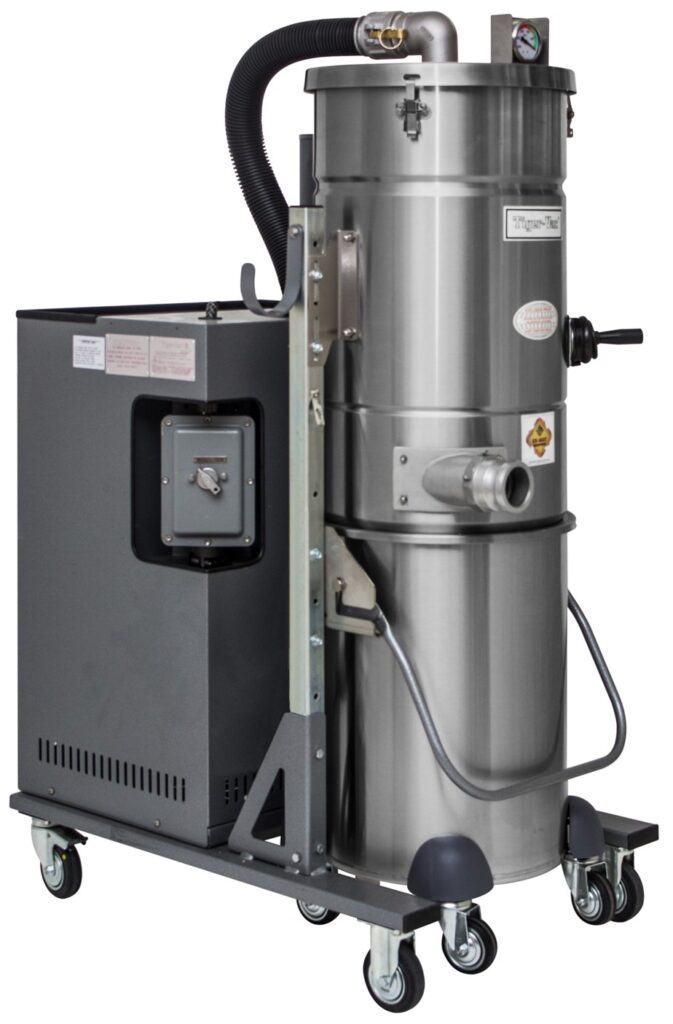

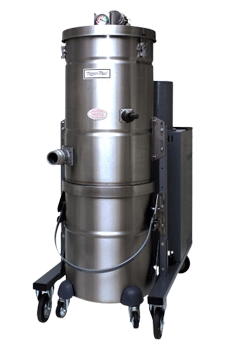

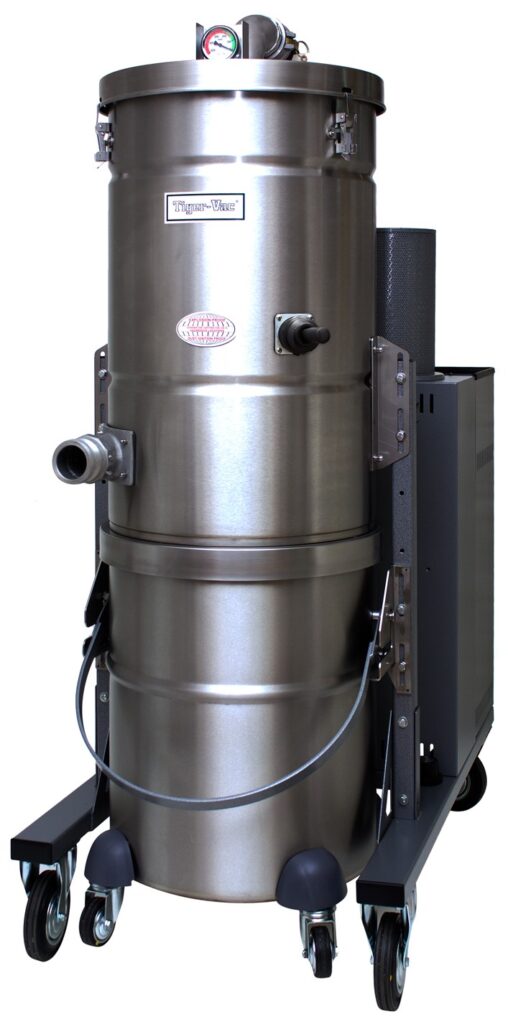

3-PHASE CONTINUOUS DUTY
Dry Recovery Only
Specifications
Safety Features
Explosion & Dust Ignition Proof Division 2
- General Cleanup, Process Integration in Hazardous Areas
- Dry Recovery Only
Combustible Dust, Powder, Tablets, Vapors - 3 Phase Continuous Duty TEFC Motor Dust Ignition Protected
- All Stainless Steel 430 Construction
- Manometer Filter Blockage Indicator
- MFS Manual Filter Shaker System
- True Cyclone Separator System at suction intake to enhance performance
- Power: 2HP, 5HP or 7.5HP
- Dry/Wet Recovery Tank Size: 55L or 100 Litre
- Detachable Recovery Tank for easy and safe disposal of recovered material
- Heavy Duty Powder Coated Cart
- Suitable for Additive Manufacturing, Chemical, Food, Pharmaceutical, Mining & Refining, Steel Industries etc.
- IECEx 3rd Party Certified, CD EX Series IECEx LCI 10.0040 X Certified for providing an Equipment Protection Level of EPL Db and EPL, T4 Gb, International Certification for Explosive Atmospheres
- CSA Certified CD-EX Division 2 Models for
Division 2, Class I, Group D
Division 2, Class II, Groups F, G, T3C - ATEX EX Certified Explosive Atmospheres
- EX-MAT Recovery Guaranteed for Combustible and Conductive Dust
- NFPA Compliant. Meets the requirements of NFPA 652 Clause 8.4.2.2.1.7
- H14 HEPA Filters 99.995% on 0.3 micron, individually tested
- ESD Safe to Prevent Ignition Hazard
- Less than 10 ohms of Resistivity
- Static Dissipative Poly Liner and Clip for ease and safe disposal
- Static Dissipative Tool Kit
Optional:
- U15 ULPA Filter 99.9995% on 0.18 microns
- Cleanroom ISO 14644-1 Class 4 Compatible
- EMI/RFI Shielded
- KINA 3® Activated Carbon for Absorption of Toxic Fumes and Vapors
- Motor and Switch for Conductive Metal Dust

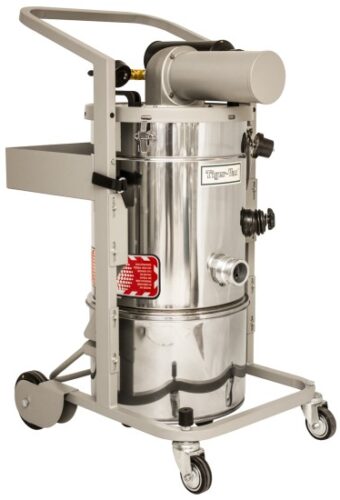

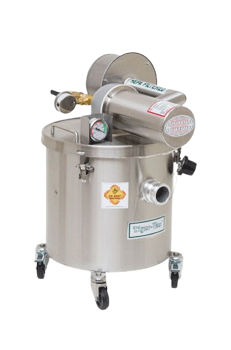

PNEUMATIC OPERATION
Dry Only or Wet & Dry Recovery
Specifications
Safety Features
Explosion & Dust Ignition Proof Division 2
- General Cleanup, Housekeeping in Hazardous Areas
- Dry Only or Wet & Dry Recovery
- Designed for Recovery of Substances and Hazardous Dust such as Asbestos, Lead, Silica, Mold, etc.
- Single Venturi Pneumatic Operation
- Low Noise Level 68dB(A)
- All Stainless Steel 430 Body and Recovery Tank
- 4 Static Dissipative Wheels
- Optional 2+2 Cart available
- Recovery Tank Size: Dry 37 Litre, Wet 47 Litre
- IECEx 3rd Party Certified, CD EX Series IECEx LCI 10.0040 X Certified for providing an Equipment Protection Level of EPL Db and EPL, T4 Gb, International Certification for Explosive Atmospheres
- ATEX Certified Hazardous Atmospheres
II2GD ExhIICT6Gb
Ex h IIIC T85°C Db - Division 2, Class II, Groups F and G
Hazardous Locations as defined in the National Electrical Code (NFPA 70) - Category 3 – Zone 2 (Gas) and Zone 22 (Dust)
- H14 HEPA Filters 99.995% on 0.3 micron, individually tested or U15 ULPA filter 99.9995% on 0.18 microns
- Static Dissipating and Conductive
- Static Dissipative Tool Kit

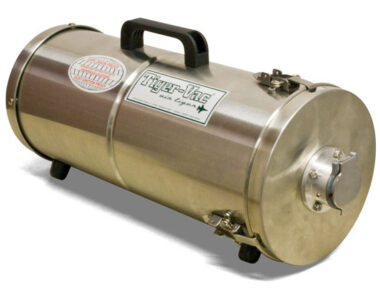

PNEUMATIC OPERATION, SINGLE VENTURI
Compact, Dry Only Recovery
Specifications
Safety Features
Dust Zone 21, 22 Gas Zone 1, 2
- General Cleanup in Hazardous Areas
- Dry Recovery Only Finely Pulverised or Flammable Dust, Powder, Tablets, General Debris
- HH Hand Held with Shoulder Straps and BP Back Pack Models are Light Weight and Ergonomic
- SS-5 is the Smallest Explosion Proof Canister System in the Industry
- Pneumatic Single Venturi Operation
- All Stainless Steel 304 Construction
- Recovery Tank Size: 2L, 6L, 12L, 22L, 28L, or 55 Litre
- Legally Certified Explosion & Ignition Proof
- Suitable for Pharmaceutical Industries
Optional:
- Carry Case for HH and BP Models
- 4 Wheel Dolly with Static Dissipative Wheels
- Detachable Recovery Tank for Easy Disposal
- Pressure Regulator
- Low Noise Model
- IECEx 3rd Party Certified, CD EX Series IECEx LCI 17.0076 X Certified for providing an Equipment Protection Level of EPL Db and EPL, T6 Gb – International Certification for Explosive Atmospheres
- ATEX EX Certified Explosive Atmospheres
- CSA Certified HAZLOC
Division 1 Class I Groups A, B, C, and D
Division 1 Class II Groups E, F, and G - EX-MAT Recovery Guaranteed for Combustible and Conductive Dust
- Cleanroom ISO 14644-1 Class 4 Compatible
- ESD Safe to Prevent Ignition Hazard
- Less than 10 ohms of Resistivity
- Static Dissipative Tool Kit
- H14 HEPA Filter 99.995% on 0.3 micron

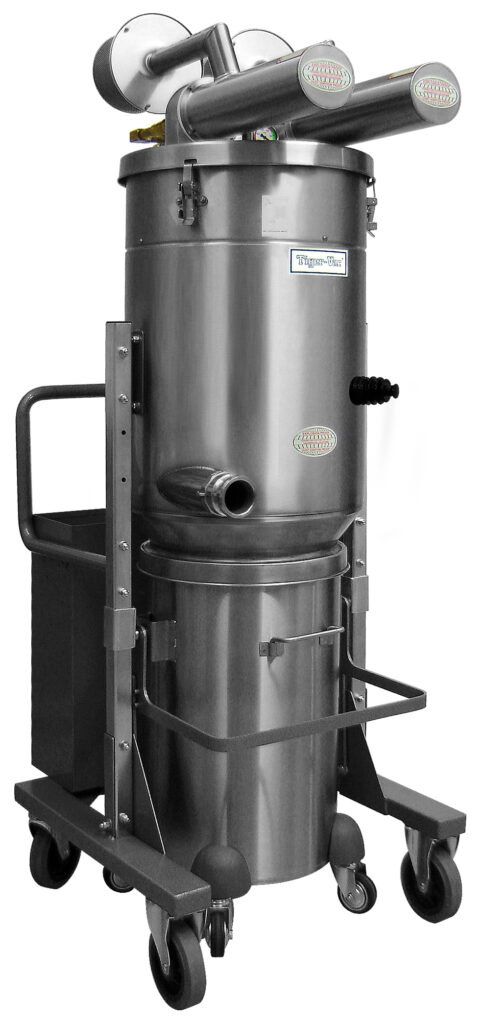

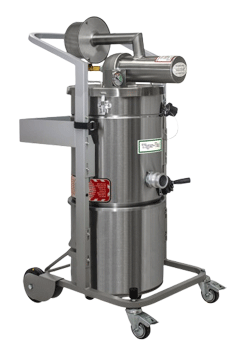

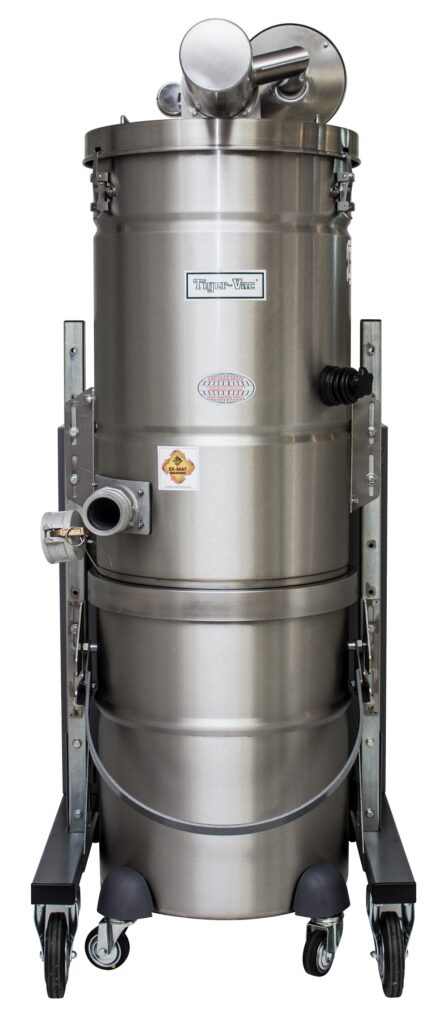

PNEUMATIC OPERATION, SINGLE OR TWIN VENTURI
Dry Recovery Only
Specifications
Safety Features
Dust Zone 21, 22 Gas Zone 1, 2
- General Cleanup in Hazardous Areas
- Dry Recovery Only, Finely Pulverised or Flammable Dust, Powder, Tablets, General and Bulk Debris
- Pneumatic Single or Twin Venturi Operation
- All Stainless Steel 304 Construction except cart
- 4 Wheel Cart and Tool Basket with Static Dissipative or Conductive Wheels
- Recovery Tank Size: 35L, 55L, 63L 100L, 160L Litre
- MFS Manual Filter Shaker
- Legally Certified Explosion & Ignition Proof
- Suitable for Pharmaceutical Industries
Optional:
- Stainless Steel Cart
- Detachable Recovery Tank for easy disposal
- MRP Manual Reverse Purge System
- RPS Reverse Purge System with aluminised spun bond cartridge
- IECEx 3rd Party Certified, CD EX Series IECEx LCI 17.0076 X Certified for providing an Equipment Protection Level of EPL Db and EPL, T6 Gb – International Certification for Explosive Atmospheres
- ATEX EX Certified Explosive Atmospheres
- CSA Certified HAZLOC
Division 1 Class I Groups A, B, C, and D
Division 1 Class II Groups E, F, and G - EX-MAT Recovery Guaranteed for Combustible and Conductive Dust
- Cleanroom ISO 14644-1 Class 4 Compatible
- ESD Safe to Prevent Ignition Hazard
- Less than 10 ohms of Resistivity
- Static Dissipative Ploy Liner and Clip for ease and safe disposal
- Static Dissipative Tool Kit
- H14 HEPA Filter 99.995% on 0.3 micron

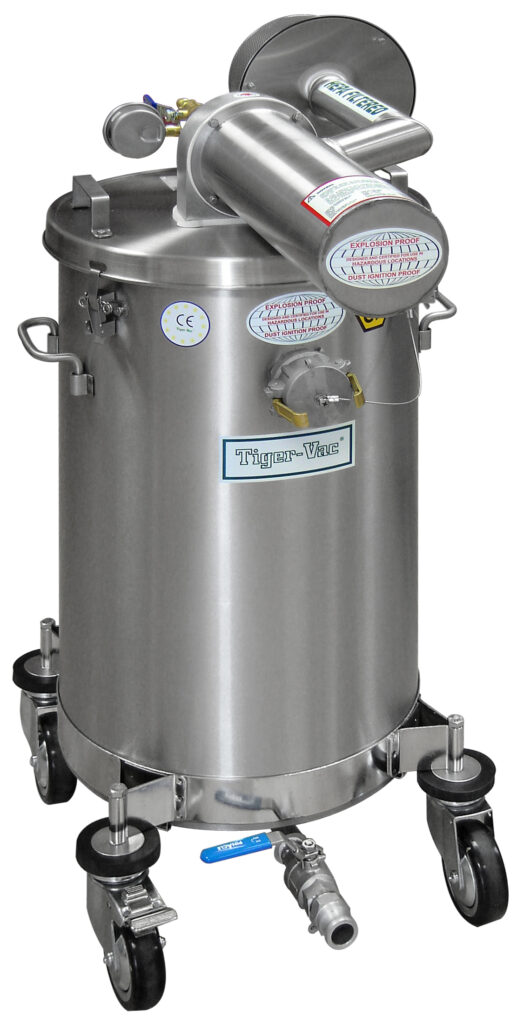

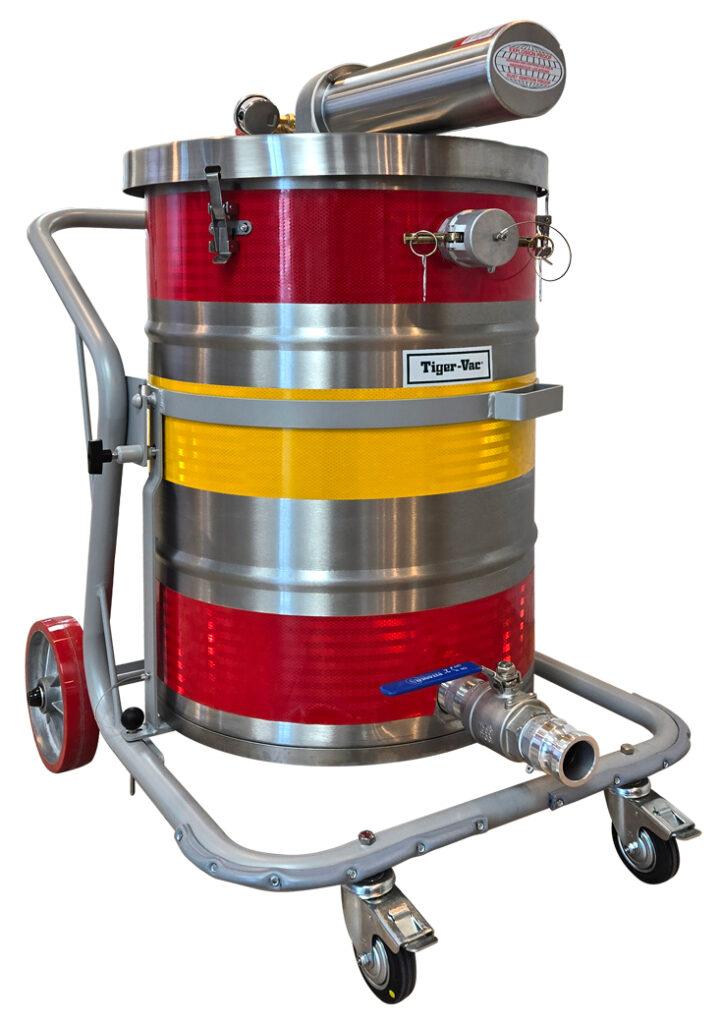

WET & DRY RECOVERY
Pneumatic Operation – Single or Twin Venturi
Specifications
Safety Features
Dust Zone 21, 22 Gas Zone 1, 2
- General Cleanup in Hazardous Areas
- Wet & Dry Recovery
Debris, Tablets, Liquids, Vapors - Single Venturi or Twin Venturi Powerhead
- All Stainless Steel 304 Construction
- Dry/Wet Recovery Tank Size: 22/28L, 37/47L, 56/95L, 150/170 Litre
- 4 Wheel Dolly or Cart Mounted
- Legally Certified Explosion & Ignition Proof
Optional:
- Stainless Steel Cart or Heavy Duty Powder Coated Tilting Cart
- Stainless Steel Drain Valve for easy emptying of recovered materials
- Detachable Recovery Tank for easy disposal
- IECEx 3rd Party Certified, CD EX Series IECEx LCI 17.0076 X Certified for providing an Equipment Protection Level of EPL Db and EPL, T6 Gb – International Certification for Explosive Atmospheres
- ATEX EX Certified Explosive Atmospheres
- CSA Certified HAZLOC
Division 1 Class I Groups A, B, C, and D
Division 1 Class II Groups E, F, and G - EX-MAT Recovery Guaranteed for Combustible and Conductive Dust
- Cleanroom ISO 14644-1 Class 4 Compatible
- ESD Safe to Prevent Ignition Hazard
- Less than 10 ohms of Resistivity
- Static Dissipative Poly Liner and Clip for easy and safe disposal
- Static Dissipative Tool Kit
- H14 HEPA Filter 99.995% on 0.3 micron
